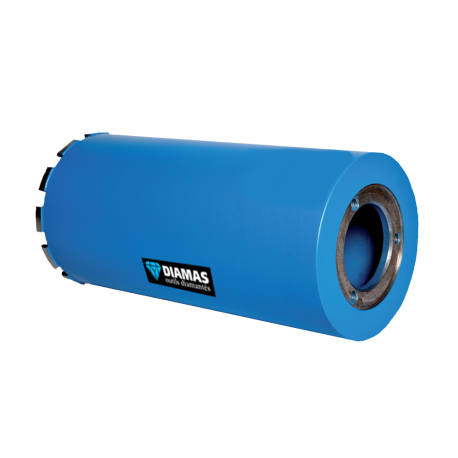

Carottier 1 1/4" UNC

Carottier ASSAINISSEMENT

carottier diamanté avec bride 3 trous pour pose de joints type forscheda

segment soudé au laser jusqu'au diametre 305mm

matériau: béton , béton armé , fonte ductile

ces dimensions sont également disponibles avec raccord de fixation standard 1 1/4 sur demande

Longueur utile disponible : 300mm ou 400 mm

Référence  Diamètre (mm) Longueur de travail (mm)   Longueur Taille Segments en mm (Long. x Larg. x H) Nb Segments
BCX-35 127 300 24 x 3,5 x 11 10
BCX-35 138 300 24 x 3,5 x 11 11
BCX-35 152 300 24 x 4,0 x 11 12
BCX-35 158 300 24 x 4,0 x 11 12
BCX-35 162 300 24 x 4,0 x 11 12
BCX-35 172 300 24 x 4,0 x 11 13
BCX-35 178 300 24 x 4,0 x 11 13
BCX-35 182 300 24 x 4,0 x 11 13
BCX-35 186 300 24 x 4,0 x 11 14
BCX-35 195 300 24 x 4,0 x 11 14
BCX-35 200 300 24 x 4,0 x 11 14
BCX-35 225 300 24 x 4,0 x 11 15
BCX-35 232 300 24 x 4,0 x 11 15
BCX-35 257 300 24 x 4,5 x 11 15
BCX-35 297 300 24 x 4,5 x 11 16
BCX-35 330 300 24 x 4,5 x 11 17
BCX-35 354 300 24 x 4,5 x 11 18
BCX 35
